FRAMERY

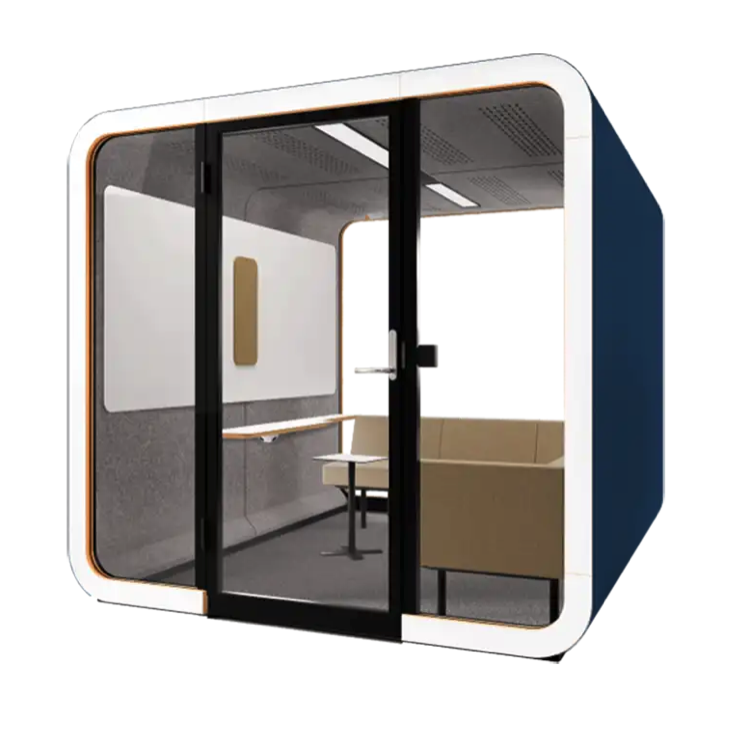

FRAMERY Q2

Description

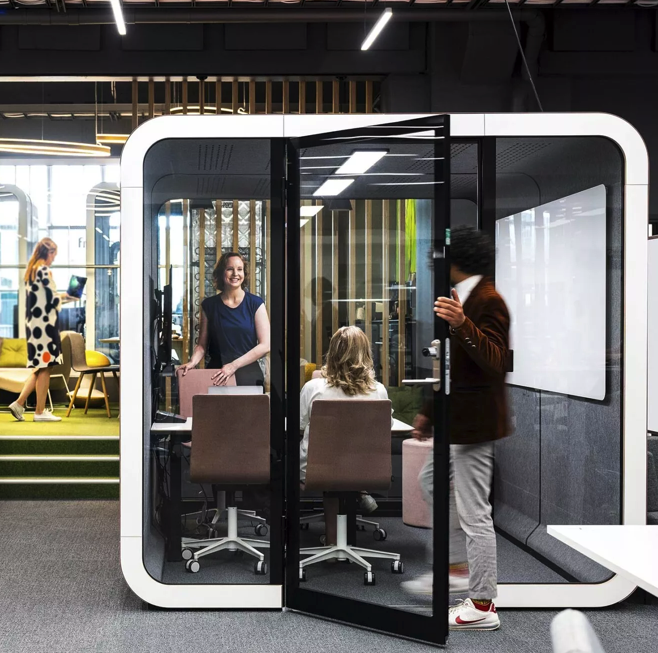

A private space to meet for up to 6 people This fully-functional meeting room is a soundproof space that supports your team when working in-person, online, and in-between.

Special features:

The soundproof meeting room for teams of up to 6
Speech level reduction of 29dB
Total airflow 121 l/s, 256 CFM (436 m³/h)
4000K / 400 lux LED lighting
Full-sized working table
Wall-mounted screen bracket
Large whiteboard (available as an option)
Adjustable lighting & ventilation

Framery is the industry pioneer – and the world’s leading
manufacturer of soundproof pods, booths, and privacy solutions
for noisy workplaces. We have conducted Life Cycle Assessments according to ISO 14040 and 14044 and released industry-first Environmental Product Declarations according to ISO 14025.

Framery’s management system is certified according to ISO 9001, ISO 14001, ISO 27001, and ISO 45001.

Specifications

Exterior – Exterior panels Painted sheet metal

Interior walls and roof – A sandwich element of sheet metal, birch plywood, recycled acoustic foam and acoustic felt

Glass – Sound control laminated glass (5 + 5 mm / 0.2 in + 0.2 in)

Frame – Formica laminate on birch plywood with varnish trim.

Floor – An anti-static and stain resistant low loop pile carpet for interior floor

Table – White Formica laminate on birch plywood with varnish trim

Power consumption
42 W while in use (standard configuration)
LED lights: 24 W
Fans in total: 18 W
5 W in standby mode
Input: 100-240 VAC, 8.0 A, 50-60 Hz

Outlets for Framery 2Q Huddle
On table: 4 power sockets, USB-A+C, HDMI, Optional: LAN (replaces 1 power socket)
Under table: 2 power sockets

Outlets for Framery 2Q Lounge
6 power sockets, 2 USB-A+C, Optional: Data Cartridge with 2 LAN ports

Outlets for Framery 2Q Without Furniture
3 power sockets, USB-A+C, Optional: LAN (replaces 1 power socket)

Output values
Output VAC (power socket): 100-240 VAC, 6,6 A, 50-60 Hz
Output USB (TUF) charging:
Maximum combined output of 5 A at 5 VDC (25W)

Finish Options

Standard finsishes –
exterior – white
frame – white
table – white
seat fabric – Clint Gray (Standard) Fiord 2 #151 Kvadratlots of other colours available as optional extras

Dimensions

Floor space
235 cm x 280 cm (w, d)
92.5 in x 110.2 in (w, d)Exterior size
222 cm x 235 cm x 280 cm (h, w, d)
87.4 in x 92.5 in x 110.2 in (h, w, d)

Ventilation space
Minimum recommended space for air to circulate:
Sides: 0 cm / 0 in (ventilation channels on the ceiling)
Above: 15 cm / 5.9 in

Weight (without furniture)
950 kg
2094 lb

Lead Times

6-8 weeks
