FRAMERY

FRAMERY ONE

Enquiry Now

Description

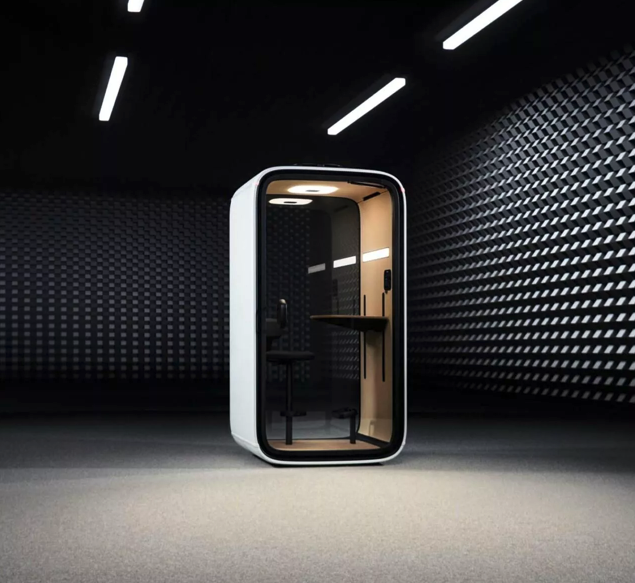

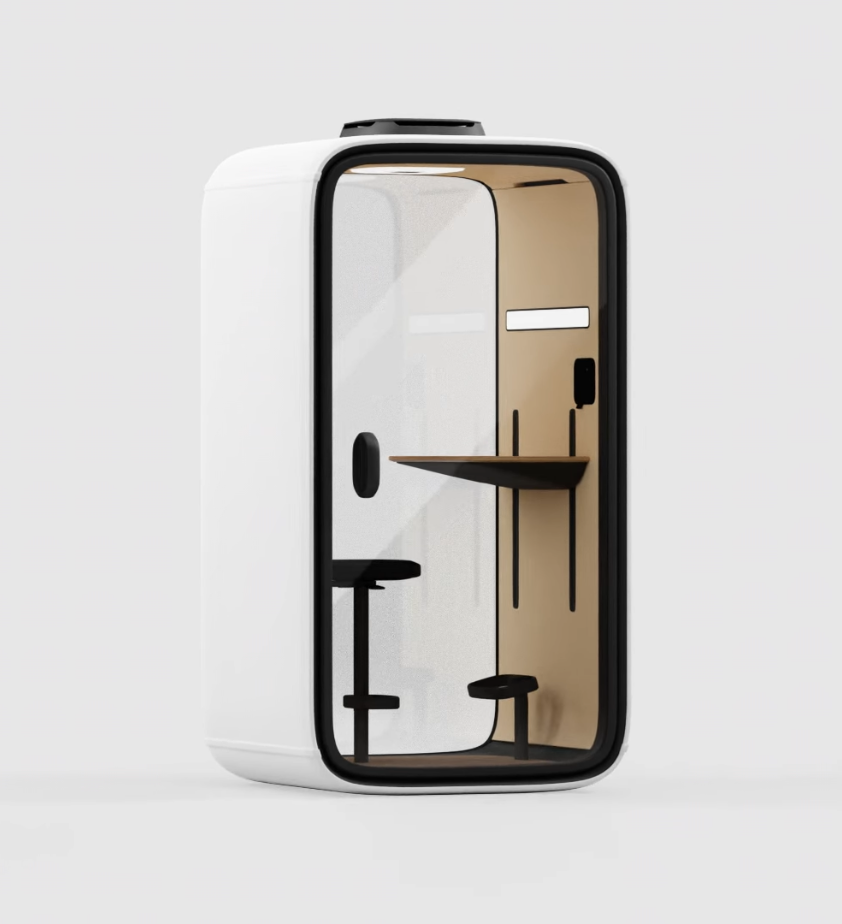

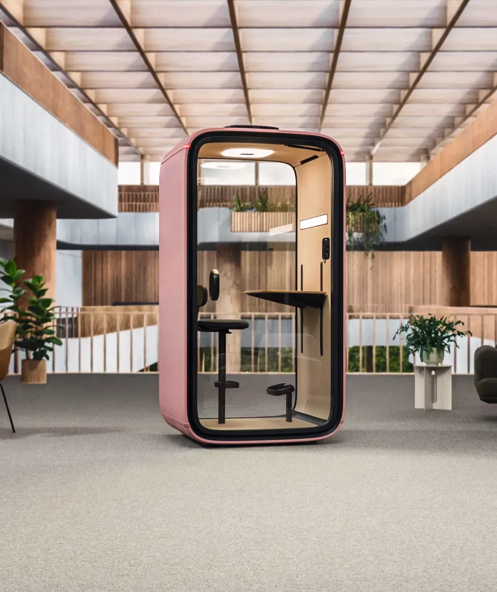

A smart, spacious, one-person workstation optimized for video calls and designed for focus work. Built smart. Made to last.

Special features:

Soundproof workstation
Speech level reduction of 30dB
Compatible with Framery Connect
Speech privacy and excellent interior acoustics
Adjustable ventilation, total airflow 29 l/s, 61 CFM (103,6 m3/h)
Dual adjustable 4000K LED lighting
Standard features - Height Adjustable table, UI Panel, including 4G connection, Video conference light, Occupancy indicator
Chair (optional) - Height-adjustable chair with dual footrest

Framery is the industry pioneer – and the world’s leading
manufacturer of soundproof pods, booths, and privacy solutions
for noisy workplaces. We have conducted Life Cycle Assessments according to ISO 14040 and 14044 and released industry-first Environmental Product Declarations according to ISO 14025.

Framery’s management system is certified according to ISO 9001, ISO 14001, ISO 27001, and ISO 45001.

Specifications

Exterior panels – Replaceable powder coated deep-drawn steel panels

Interior panels – Replaceable interior panels made from PET sheets which are laminated with polyester fabric

Glass – Sound control laminated glass (4 mm + 4 mm / 0.16 in + 0.16 in)

Frame – Matte black frames made from steel & aluminum

Interior walls and roof – A sandwich element chassis made of deep-drawn sheet metal & recycled acoustic foam

Floor – Anti-static and stain resistant low loop pile carpet for the floor

Height-adjustable Table – Formica laminate on birch plywood with varnish trim available in oak veneer, white anti-fingerprint, or black anti-fingerprint finishes

Lighting
Ceiling light: color temperature 4000 K, illuminance up to 500 lux on the tabletop
Video conference light: color temperature 4000 K, illuminance up to 400 lux on the user’s facial area

Total airflow
Maximum airflow is 29 l/s, 61 CFM

Power consumption
30 W while in use (Standard configuration)
LED lights: 19 W
Fans in total: 7 W
Other components: 4 W
6 W in standby mode
Input: 100–240 VAC, 10.0 A, 50–60 Hz

Outlets
Power socket, USB-C
Optional: LAN port

Output values
Output VAC (power socket): 100–240 VAC, 6.6 A, 50–60 Hz
Output USB C charger: 18 W

Output powers
BLE 10 dBm, LTE 23 dBm, GSM 850/900 33 dBm, GSM 1800/1900 30 dBm, WCDMA 24 dBm

Activated carbon filter (optional)
An optional activated carbon filter is available for Framery One. The filter must be replaced annually.

Finish Options

Standard finsishes –
exterior – white
Interior panels – Pure Gray (Standard) Tonal #60123 Gabriel
frame – black
table – white
seat fabric – Graphite (Standard) Select #60051 Gabriellots of other colours available as optional extras

Dimensions

Floor space
122 cm x 100 cm (w, d)
48 in x 39.4 in (w, d)Exterior size
225.5 cm x 122 cm x 100 cm (h, w, d)
88.8 in x 48 in x 39.4 in (h, w, d)
– With castors (comes with movability kit): extra
3 cm / 1.18 in in height
– Activated carbon filter: additional 6.5 cm / 2.56 in in height

Ventilation space
Minimum recommended space for air to circulate:
Above: 15 cm / 5.9 in
(No extra space needed on top of the filter housing)

Weight
357 kg
787 lb

Lead Times

6-8 weeks
